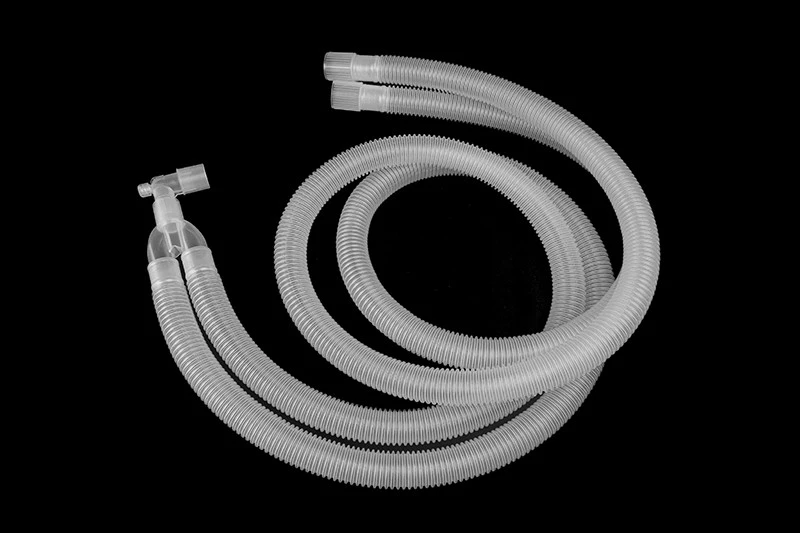

The Disposable Anesthesia Breathing Circuit is an essential single-use respiratory auxiliary device for clinical anesthesia and critical care, designed to build a standardized closed gas circulation system. It connects anesthesia machines, ventilators and patient airway devices stably, realizing the delivery of mixed anesthetic gas and oxygen, as well as the discharge of exhaled carbon dioxide. Effectively avoiding cross-infection between patients, it is widely applicable for surgical general anesthesia, ICU mechanical ventilation and emergency respiratory resuscitation.
Made from medical-grade latex-free PVC material, the product fully complies with ISO 10993 biocompatibility standards with low mucosal irritation and no toxic odor. Adopting a flexible anti-kinking tube body and smooth inner wall design, it reduces airflow resistance and ensures stable gas circulation. Equipped with international standard universal interfaces and complete supporting accessories, it is highly compatible with mainstream clinical anesthesia and ventilation equipment. Available in multiple specifications for pediatric and adult patients, each circuit undergoes strict air tightness and performance tests, complying with ISO 13485, CE, and NMPA standards to guarantee safe and reliable clinical application.
Product Specification
|
Item |
Description |
|
Applicable Population |
Pediatric, Adult |
|
Application Scene |
Surgical anesthesia, ICU ventilation, emergency resuscitation, postoperative recovery |
|
Circuit Type |
Closed-loop breathing circulation type |
|
Main Material |
Medical-grade latex-free PVC |
|
Biocompatibility |
Complies with ISO 10993 Standard |
|
Interface Standard |
International universal 15mm/22mm tapered interface |
|
Matching Accessories |

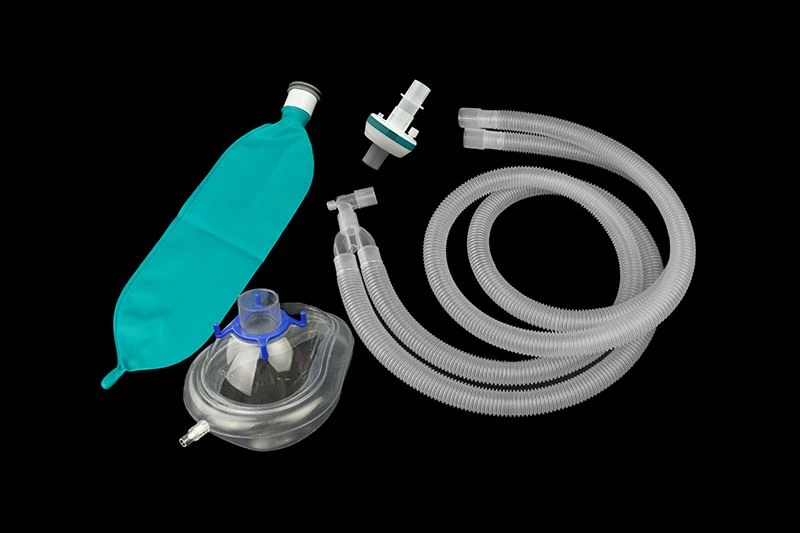

Y-connector, breathing reservoir bag, water trap, bacterial and viral filter |
|
Sterilization Method |
Ethylene Oxide (EO) sterile |
Product Properties
1. Stable Closed Circulation Performance: The fully matched closed-loop structure effectively reduces anesthetic gas leakage, maintains stable positive pressure ventilation, ensures accurate and efficient delivery of oxygen and mixed anesthetic gas, and reduces medical gas waste.
2. Low Resistance Gas Conduction: The smooth inner wall of the breathing tube minimizes airflow resistance and dead space, ensures unobstructed gas circulation, adapts to long-term mechanical ventilation, and improves patient breathing comfort and ventilation safety.
3. Anti-kinking & Flexible Structure: The high-flexibility tube body can withstand multi-angle bending without collapse or blockage, adapts to various clinical operation postures and patient placement positions, and avoids ventilation interruption caused by pipeline distortion.
4. Professional Filtration & Condensate Collection: Equipped with a high-efficiency bacterial and viral filter to intercept pathogens and reduce respiratory infection risks; the matched water trap effectively collects condensed water in the pipeline to prevent liquid backflow from affecting ventilation effect.

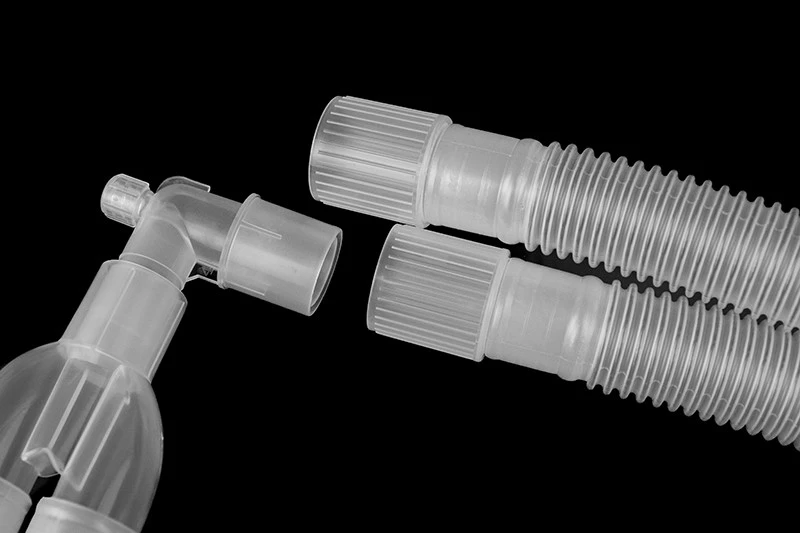

5. Universal Clinical Compatibility: Standard 15mm/22mm interfaces are seamlessly compatible with all mainstream anesthesia machines, ventilators, endotracheal tubes and breathing masks worldwide, adapting to diverse clinical equipment systems.
6. Safe & Biocompatible Material: Adopts medical-grade latex-free PVC material, which is non-toxic, odorless, low in irritation, and complies with international biocompatibility standards, avoiding allergic reactions and respiratory mucosal damage during use.
Application
1. Surgical General Anesthesia: Establishes a stable closed breathing circulation system for pediatric and adult patients undergoing elective, emergency and complex surgeries, providing continuous and stable anesthetic gas delivery and intraoperative ventilation support.
2. ICU Critical Care Ventilation: Suitable for short-term and long-term mechanical ventilation of critically ill patients with respiratory failure, ARDS, severe infection and post-operative critical conditions, ensuring safe and stable respiratory support.
3. Emergency Airway Resuscitation: Matches emergency ventilators and resuscitation equipment to provide rapid respiratory ventilation support for patients with acute respiratory distress, airway obstruction and unconsciousness in emergency departments and pre-hospital rescue scenarios.
4. Post-anesthesia Recovery Care: Provides oxygen inhalation and assisted ventilation for patients in the anesthesia recovery room until their spontaneous breathing function fully recovers, ensuring the safety of the recovery period.
5. Special Respiratory Treatment: Applied in respiratory department for auxiliary ventilation treatment of patients with chronic severe respiratory diseases, meeting the needs of temporary and standardized respiratory intervention.
Physical Properties
|
Item |
Specification |
|
Operating Temperature |
-10℃~40℃ |
|
Air Tightness |
No air leakage under standard ventilation pressure |
|
Pipe Flexibility |
≥90° bend without cracking or blockage |
|
Circuit Length |
Pediatric: 1.2m; Adult: 1.6m |
|
Ventilation Resistance |
≤6cmH₂O under rated working flow |
|
Reservoir Bag Specification |
Pediatric: 0.5L; Adult: 2L |
QA&QC
1. Certifications: ISO 13485, CE, NMPA compliant.
2. Batch testing: Strict batch inspection including air tightness test, airflow resistance detection, dimensional accuracy verification and biocompatibility assessment.
3. Traceability: Unique batch number marked on each package for full production and circulation tracking.
4. Safety docs: Complete Instruction for Use (IFU) and Material Safety Data Sheet (MSDS) are provided.
Packing, Storage, Handling and Transportation
The product is individually packed with ethylene oxide (EO) sterile paper-plastic composite packaging for independent protection; it should be stored in a clean, dry, and well-ventilated environment within the temperature range of -10℃~40℃ and relative humidity ≤80%, avoiding direct sunlight, high temperature, high humidity, and contact with corrosive substances or sharp objects. This product is for single patient single use only to prevent cross-infection. Only trained professional medical personnel are authorized to operate the product. Prior to use, inspect the packaging for damage, tampering, or expiration, and do not use if any defects are detected. During transportation, comply with international and domestic medical device transportation standards, avoiding violent collisions, rain soaking and moisture erosion to maintain product integrity and functional performance throughout transit.
Reasons for choosing us
Zhejiang Mediunion Healthcare Group Co. Ltd. (a branch of Evergrand Healthcare Group, founded in 2014) is located in Ningbo City, Zhejiang Province - enjoying an excellent location and convenient transportation. Our business covers medical device manufacturing & sales, plus investments in nursing homes, dental clinics, specialist hospitals and medical care services. Our products are sold worldwide, and we've won global consumer recognition with high-quality goods and comprehensive after-sales service.
Diversified Product Portfolio
Our product range includes disposable medical consumables, medical equipment and non-woven products (e.g. dental supplies, respiratory care items). This diverse lineup caters to the needs of medical institutions, clinics and other clients.
Reliable Supply & Collaboration
We have rich industry experience and partner with over 600 factories. These partners are equipped with advanced production equipment and skilled frontline staff, enabling us to produce customized products/components as per specific requests.
Strict Quality Assurance
We prioritize innovation & quality, backed by the ISO 13485:2016 quality management system. Strict control runs through raw material procurement, mass production, process management and finished product release. Our professional services (production control, order follow-up, delivery) also set us apart.
Certificate
FAQ
Q:What is your standard production lead time?
A:Our standard production lead time for bulk orders is 3-4 weeks after order confirmation and receipt of the deposit. For large-volume orders (exceeding 100,000 units) or customized products, the lead time may be extended to 4-7 weeks. We will provide a detailed production schedule upon order placement and keep you updated on the production progress in real-time.
Q:Do you have experience shipping to our country/region?
A:Yes, we have extensive experience shipping to countries and regions worldwide, including North America, Europe, Asia, South America, and Africa. We are familiar with the local import regulations, customs clearance requirements, and logistics channels of different regions, and can cooperate with reputable logistics partners (e.g., DHL, FedEx, UPS, or sea freight forwarders) to ensure smooth delivery. We also provide all necessary shipping documents (e.g., commercial invoice, packing list, certificate of origin, and customs clearance documents) to facilitate customs clearance.
Q:How do you ensure proper packaging, labeling, and transport safety?
A:We take multiple measures to ensure packaging, labeling, and transport safety:
Packaging: Use shockproof, moisture-proof, and sterile packaging (if applicable) that meets international shipping standards. For fragile products, we add extra protective materials (e.g., bubble wrap, foam) to prevent damage during transportation;
Labeling: All labels comply with UDI/GS1 and local regulatory requirements, including product name, batch number, expiration date, usage instructions, and warning information. Multilingual labels are available upon request;
Transport Safety: Cooperate with logistics partners with experience in medical product transportation, ensuring compliance with temperature control requirements (if applicable) and providing transport insurance to cover any potential losses during shipment.
